Perfect for applications such as mounting a barn door in a basement with low ceilings or duct work close to door opening. Ideal for low clearance applications; complete track and wheel will fit in only 3â€³ of clearance over top of door slab. This low profile barn door door hardware works great in applications where you have limited room between the top of door and ceiling and other limited headroom applications for sliding track.
Custom designed by RLP meant to operate safer and smoother. Installs faster and easier than most flat track.
A complete new and different aproach for design in heavy duty barn door hardware.
Proudly made in the USA. Unique proprietary design by RLP!
Channel shape of barn door track adds extra strength and rigidity which allows track to span greater distances. Heavy duty version of our V track made with formed 3/16" steel and double ball bearing glass filled nylon wheels can support much heavier loads and big barn doors.
Wheel spacing from hanger is adjustable.
Special design for obscure stop at end of track- no metal on metal clang!
Better for remodel installations where one needs to drill into studs rather than a solid header for attaching track to wall. It can span up to 24â€³ between attachment points within length of track (5 lag screws minimum, though, per door). Special channel shape of track adds strength where it can cantilever past attachment point, too.
Simple setup during install with spacer blocks mounts wheel exact distance over door slab so that it cannot jump out of channel and no anti-jump blocks required. The added security of this design insures safe operations and function barn door track.
Can be order with or without mounting holes predrilled in track so you can match the track to the mounting points available on the wall.
Complete kit for track includes all hardware you need to mount your door. You do not need to purchase any extra lags or other fasteners.
Colored kits are coated with matte textured, industrial, baked on powder coat- not spray painted like many other brands.
Extremely heavy duty design can support larger than normal doors if installed with proper backing in wall and track properly attached with supplied lag screws to wall. Specially formed shape of track, extra thick 3/16" steel, and double ball bearing wheels support sliding door slabs easily.
Save money by combining this track kit with a one of our barn door slabs for an additional $85 discount.
Glass filled nylon wheel with two sealed ball bearings for long life, quiet ride, and corrosion resistance. RLP proprietary custom design made just for this track.
650 pound load capacity per rail.
Requires 3â€³ of clearance over top of door slab.

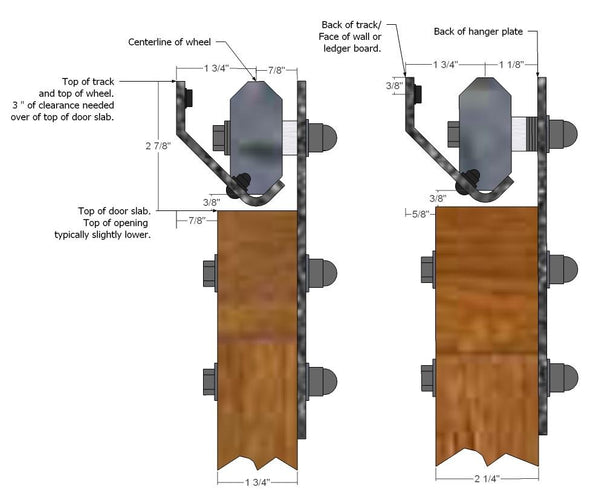

Track is a one-piece track that does not require standoff spacers. Distance from back of track which is usually mounted directly to wall to the center of the wheel is 1 Â¾â€³; this means that on a typical 1 Â¾" thick door there is about 1/2â€³ clearance behind mounting bolts in back of door. The track can be mounted on a ledger board to increase this distance off the wall.
The hangers are slightly under 8â€³ tall and extend down from the top of the door 5â€³. The rectangular shaped hanger is 2 Â½â€³ wide.
All mounting bolts are 3/8â€³.
Track and hangers are made with 3/16â€³ thick steel. Our strongest, heavy duty industrial version of track.
Precision formed with CNC break and laser cut for precise, repeatable accuracy.
Available lengths of 6, 7, 8'.
Please note if you are ordering the Unfinished Bare Raw Steel option for color it has no seal coat or finish on the raw steel. The steel may have rust and discoloration. It is raw steel with varied colors shiny silver, dull grey, to rust pitted. The different components may not match exactly in color with the unfinished option. Most customers order this option for an industrial look, or they intend to finish themselves with another treatment.

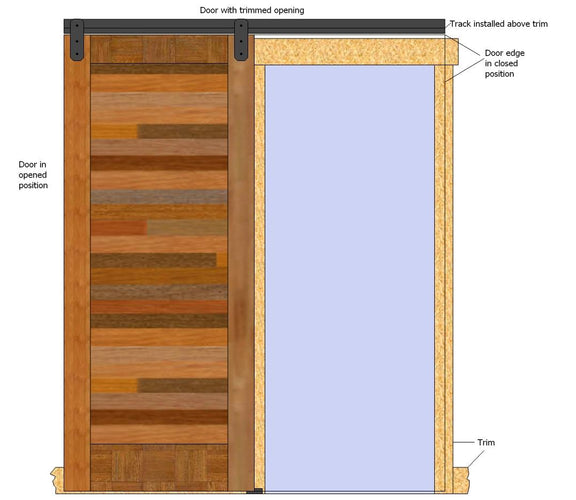

Track has stop holes predrilled. For installations with a solid header order predrilled mounting holes in your track; otherwise for installations with inconsistent mounting points order track with no mounting holes so you can drill to match your layout. Normally you should order track twice the width of your door.
1/4â€³ x 4â€³ timber lag screws in the quantity matched to length of track you ordered.
Two end stops.

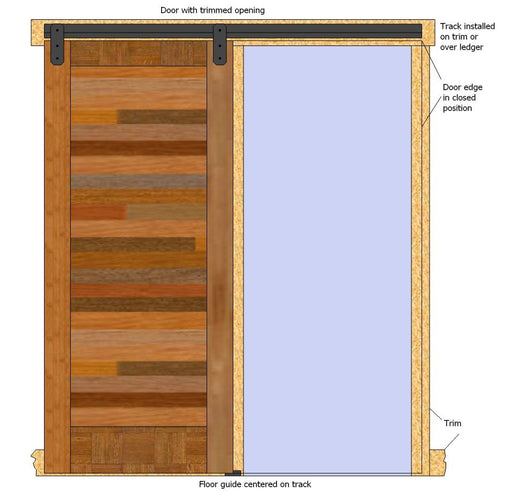

Floor guide is black, 3â€³ long, 1â€³ tall, and made with 3/16â€³ thick glass filled nylon. Floor guide is meant to be screwed to floor with two black #8 screws supplied (alternatively could be epoxied to floor or over concrete customer may need to supply concrete anchors. Recommendation is to mount door Â½-3/4â€³ off floor.
Two carrier assemblies which include hanger plate; axle; spacers to adjust depth of wheel; double ball bearing, glass filled nylon wheel; mounting bolts corresponding to your thickness of door; washers and acorn nuts.
Two plywood spacer blocks for easy install of carrier assembly to door slab.
No anti-jump blocks are required because of the unique design of track and installation method.
Four color choices standard: raw unfinished steel along with these textured powder-coat colors black, rust bronze and satin nickel.Â Please note that these pictures are of the actual product but the color may look different in person than on this screen.Â Also note that we make no representation that our color name matches any other manufacturerâ€™s color. Â All floor guides are black nylon.
Specify the thickness of door mounting on this track so we supply the correct length mounting bolts. Â The bolts supplied are typically 1/2" longer than the thickness of the door.

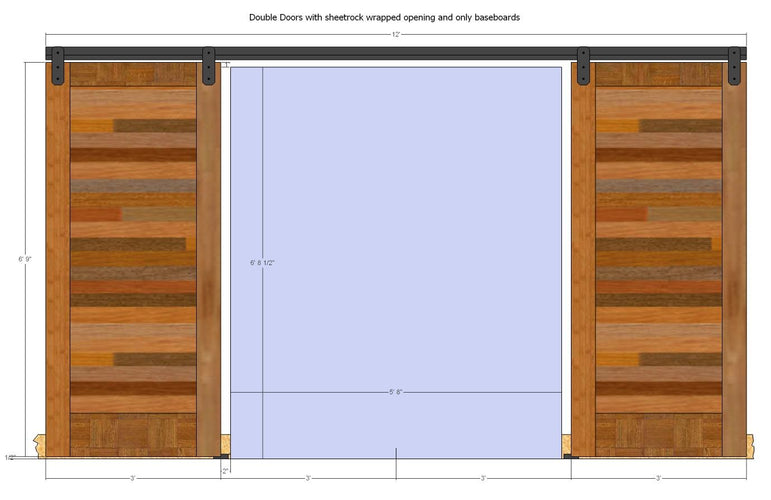

If you are doing two doors per track, order kit for 2nd door on single track. Â For example this would be mounting two 2' doors on a single 8' track. Â Alternatively for larger byparting doors with one opening to the left and one to the right such as two 3' doors just order two complete 6' track kits.
We can custom build a bracket for you to mount this track across a hall-way where you donâ€™t have any backing or attachment points.Â This track can span across openings if supported on each end due to its higher strength channel design.Â Be sure to consult with us first, though, for span distances and weight restrictions.
RLP warrants this hardware is free of defects and is guaranteed for ten years if installed properly.
Customer misusing hardware or not following installation directions voids warranty.
Warranty does not cover normal wear and tear especially on finish.
All products sold by RLP are non-refundable and non-returnable since most are made to order.
